Summit | 24" Wide 230V 4-Burner Radiant Cooktop (CR4B242BK)
3.0" H x 24.0" W x 20.5" D
(8cm H x 61cm W x 52cm D)
FEATURES
DESCRIPTION
Summit offers an extensive selection of radiant cooktops for all kitchen spaces, including 24" wide European choices.

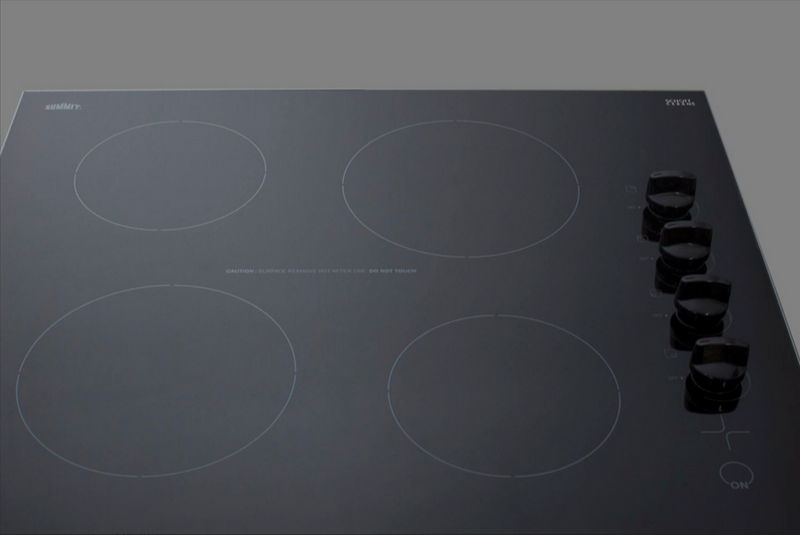

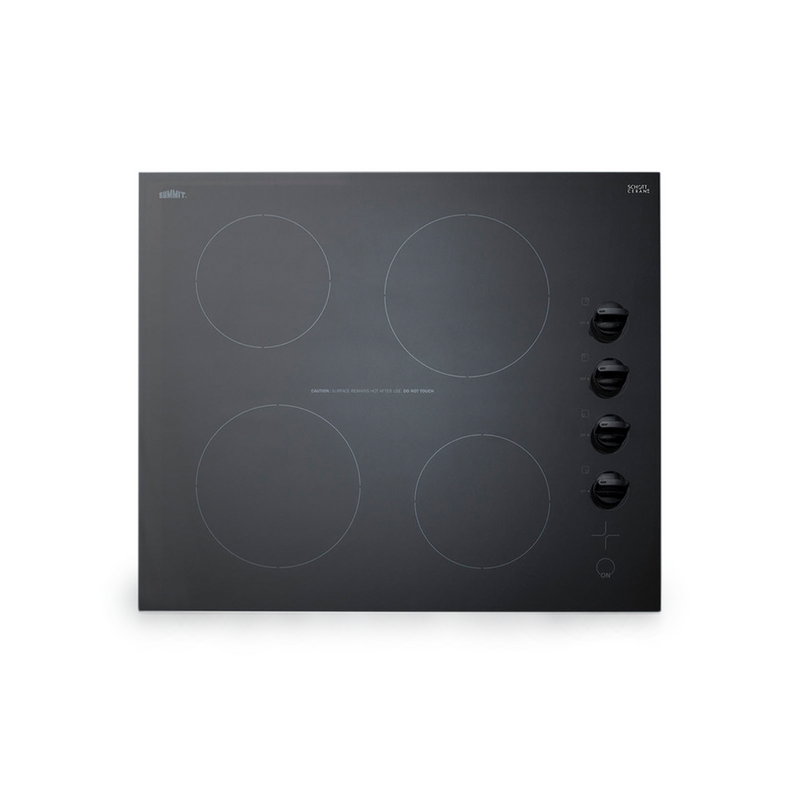

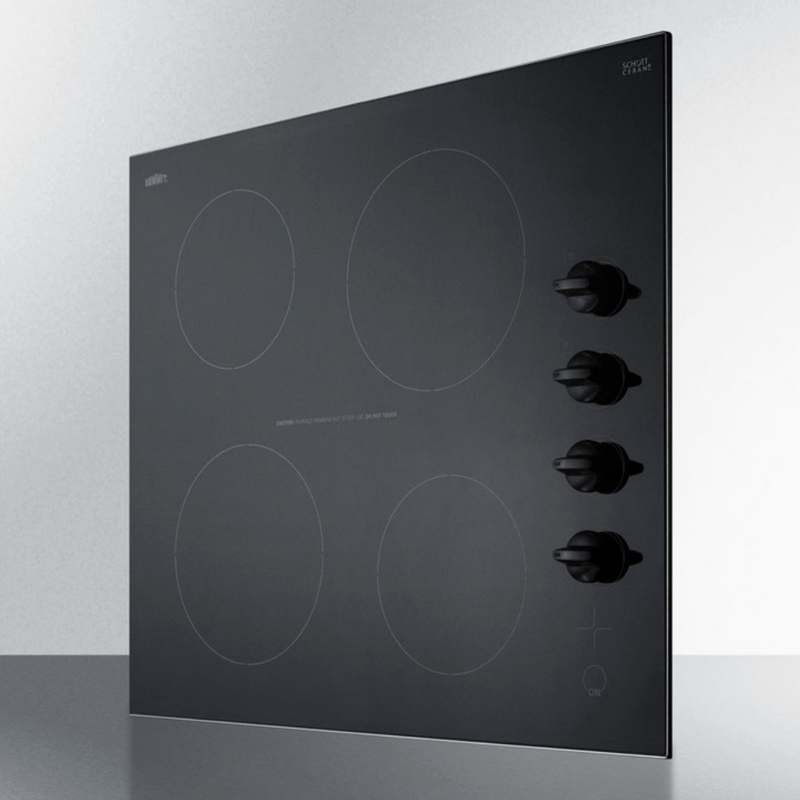

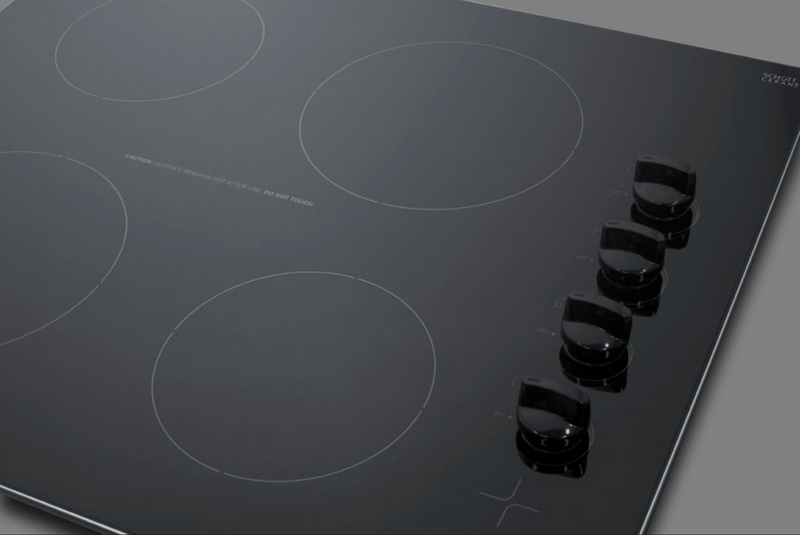

The CR4B242BK is a 230V 6000W electric cooktop designed to fit common 22 1/8" W x 19 3/8" D cutouts. Two 7.5" elements offer 1800W of power for larger cooking vessels, with two standard 6" 1200 elements to handle lighter cooking needs. The glass surface comes in a striking jet black finish. Color-matched push-to-turn knobs complete the look. The side-mounted control panel helps to free up space in front when cooking. This unit includes individual indicator lights to show which burners are in use.
In addition to the CR4B242BK, Summit offers a variety of cooktop choices, including white glass models, induction cooktops, coil cooktops, and more. Browse our website to explore our full selection.
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 3.0" (8 cm) |
| Width | 24.0" (61 cm) |
| Depth | 20.5" (52 cm) |
| Cabinet | Black |
| US Electrical Safety | UL |
| Amps | 30.0 |
| Voltage/Frequency | 230 V AC/60 Hz |
| Weight | 20.0 lbs. (9 kg) |
| Shipping Weight | 36.0 lbs. (16 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101078731 |
|
Electric Cooktop
|
|
| Heating Type | Radiant |
| Surface | Glass |
| Element Type | Glasstop |
| Number of Elements | 4 |
| Controls | Dial |
| Countertop Cutout Height | 4.0" (10 cm) |
| Countertop Cutout Width | 22.13" (56 cm) |
| Countertop Cutout Depth | 19.38" (49 cm) |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 1200.0 |
| Element #2 Size | 7.5" (19 cm) |
| Element #2 Wattage | 1800.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 1200.0 |
| Element #4 Size | 7.5" (19 cm) |
| Element #4 Wattage | 1800.0 |
| Power Cord Included | No |
DOWNLOADS
CR4B242BL_Cooktop__A-C_2018_.dwg
