Summit | 30" Wide Single Drawer Built-In Refrigerator (SDR30)

Original price $3,499.99 - Original price $3,499.99
Original price
$3,499.99
$3,499.99 - $3,499.99
Current price $3,499.99

Flat rate shipping click HERE

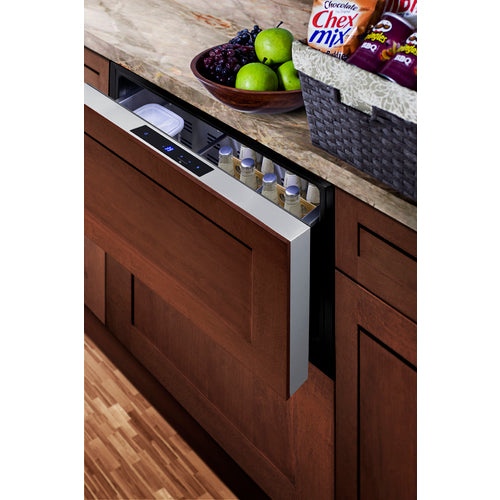

Versatile design with a fully finished drawer front in stainless steel that can also accept overlay panels for a custom look

17.75" H x 29.5" W x 22.0" D

DESCRIPTION


Summit offers a quality line of commercially approved drawer refrigerators, including single drawer options for built-in installation.

The SDR30 is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The fully finished black cabinet also enables freestanding use. The drawer features 304 grade stainless steel construction inside and out, with a fully finished front that can also be customized with your own overlay panels to match existing cabinetry style (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness). This unit has a sealed rear with no exposed coils and a right angle plug for an easier fit.

Inside, the SDR30 has a 2.5 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.

With its fully-featured, weatherproof design, the SDR30 is the perfect cooling compartment or beverage holder for home kitchens, as well as hotel spaces, foodservice areas, and more. Additional single drawer choices are available in a 21" and 24" width, with a 36" choice available soon.

Note: Wood panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

FEATURES


30" wide single drawer refrigerator

2.5 cu.ft. all-refrigerator in a single drawer style

Commercially approved

ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

Built-in capable

Front-breathing design allows you to build the drawer into cabinetry

Panel-ready drawer front

Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness)

304 grade stainless steel drawer

Drawer front and interior constructed from stainless steel for added durability and easy cleanability

Frost-free operation

Minimum user maintenance with a fully no-frost operation system

Digital thermostat

Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit

LED lighting

Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior

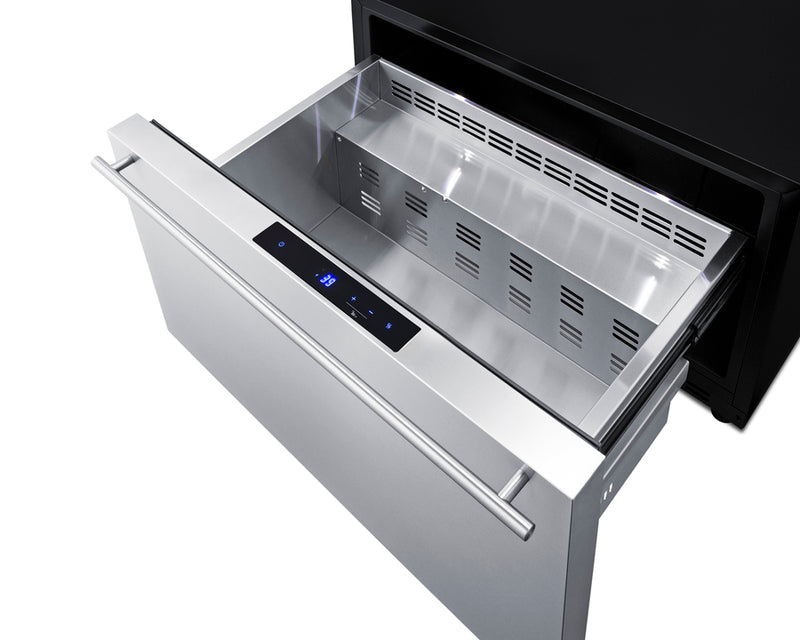

Drawer divider

Removable divider makes it easy to organize stored items

Glass shelf

Includes one half-sized shelf that lets you create more separation as needed

Internal fan

Fan-forced cooling ensures the unit is evenly cooled

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Professional handle

A sleek stainless steel handle adds an elegant touch to any setting

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm

Audible alarm will sound if the drawer is left open longer than one minute

Sabbath Mode

Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours

Child lock

Disables digital controls after two minutes of activity for added safety

Sealed back

Space-saving design with no exposed coils for easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SPECIFICATIONS

Overview
Height of Cabinet 17.75" (45 cm)
Width 29.5" (75 cm)
Depth 22.0" (56 cm)
Depth with Handle 23.5" (60 cm)
Depth with door at 90° 37.88" (96 cm)
Capacity 2.54 cu.ft. (72 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 280.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 77.0 lbs. (35 kg)
Shipping Weight 85.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101086606

Refrigerator Features
Sabbath Mode Yes
Door Swing Drawer
Reversible No
Shelf Type Glass
Shelf Qty 1
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.92oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 34.3 dB

Dimensions
Interior Height 13.0" (33 cm)
Interior Width 23.63" (60 cm)
Interior Depth 15.5" (39 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 23.63" (60 cm)
Compressor Step Depth 4.5" (11 cm)

DOWNLOADS

BROCHURE w/ DRAWINGS

TECHNICAL DRAWING (.dwg)
ASSEMBLY DRAWING
