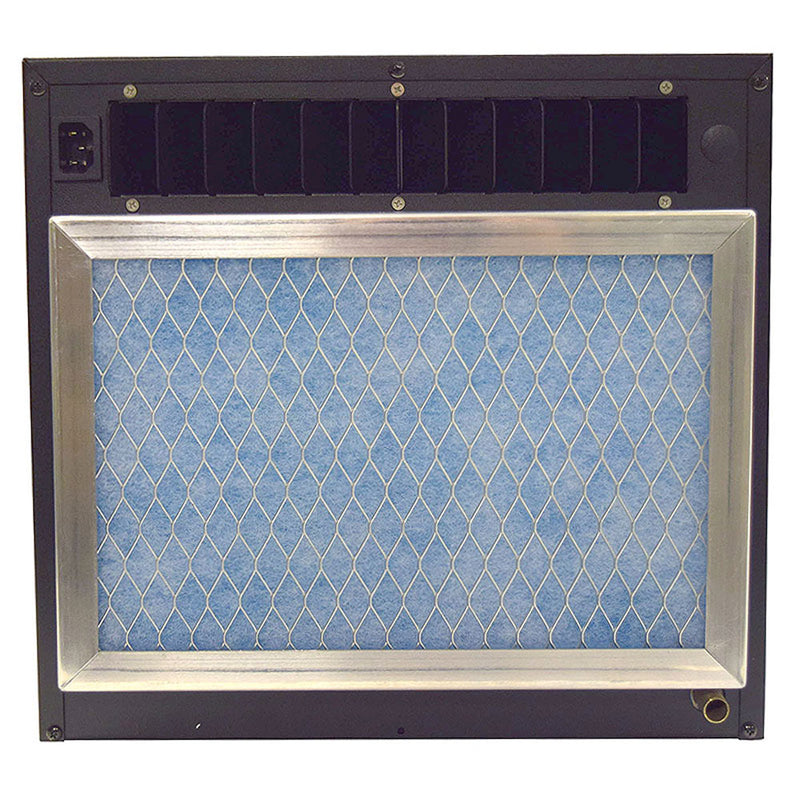

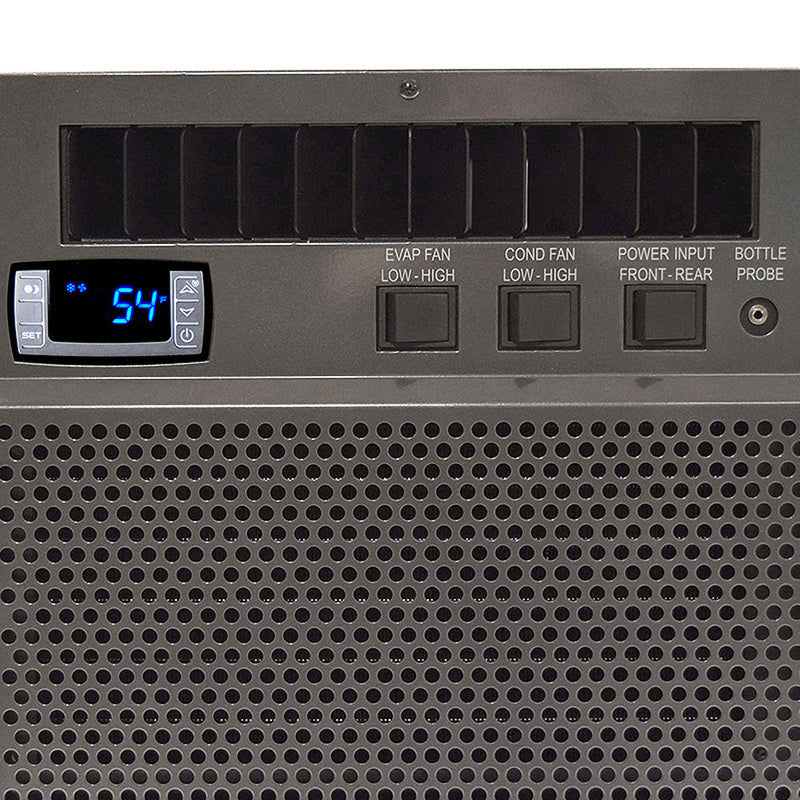

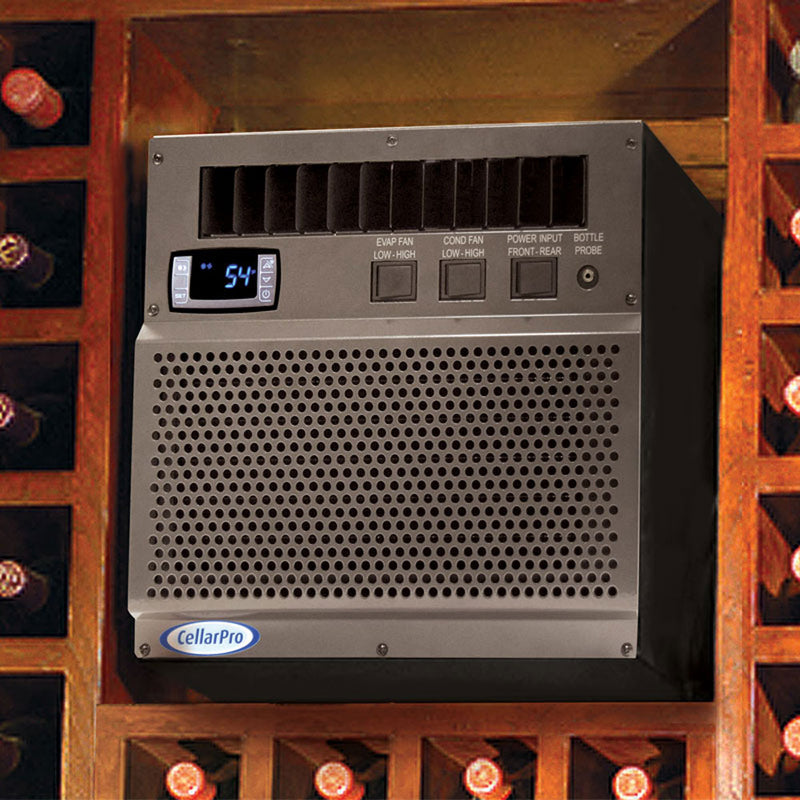

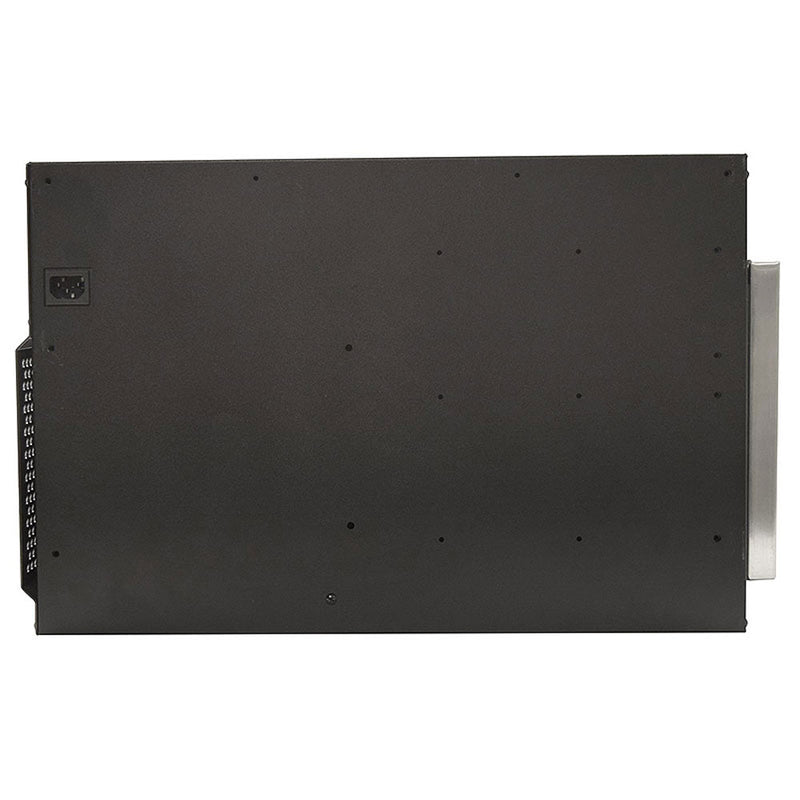

CellarPro Wine Cooling Unit (400 Cu.Ft. Capacity)
CellarPro engineered the low profile 2000VSi cooling unit specifically for installations in wine cellars with limited space. Just 14 1/8-inches wide and 13 1/4-inches tall, the 2000VSi cooling unit will fit in between studs and/or above door frames. Dual independent variable-speed fans offer flexibility to trade-off between super-quiet operation vs maximum performance. All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar.
- Variable-speed fan inside the cellar:
- 1886 BTUH on high fan speed
- 1713 BTUH on low fan speed
- Variable-speed fan outside the cellar:
- 110F maximum intake temperature / 61.5 dBA on the high fan speed
- 100F maximum intake temperature / 55.5 dBA on the low fan speed
OPTIONS AND MODIFICATIONS
CellarPro's 2000VSi should be used for interior through-the-wall or ducted wine cellar installations. The cooling unit is designed to operate in environments ranging from 40 to 110 degrees. For installations in environments down to 20°F, we recommend adding our compressor heater modification to the cooling unit. Below 20°F, the cooling unit's performance will begin to degrade.
The cooling unit can be located remotely and ducted with our front duct kit, rear duct kit, bottle probe and remote control accessories. With our duct kits, the supply and return airflows can be ducted up to 100 equivalent feet (50 feet per duct) without an inline fan, or 200 equivalent feet (100 feet per duct) with an inline fan.
