DESCRIPTION

2 Ton Split Water Chiller

• 24,000 BTU/hr
• 1.5″ Slip Connections
• Copper Heat Exchanger (Titanium upgrade optional)
• 208 – 240 Volts / 17.7 Amps / Single Phase
• Condenser: 27″W x 27″D x 34″H, 150 Pounds

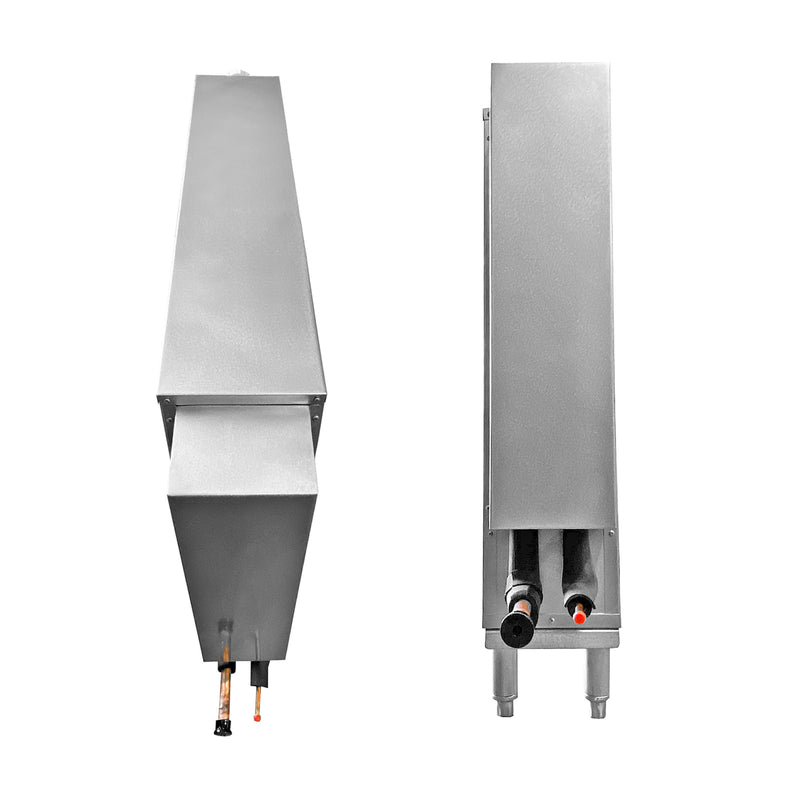

• Evaporator: 8″W x 42″D x 24″H, 85 Pounds

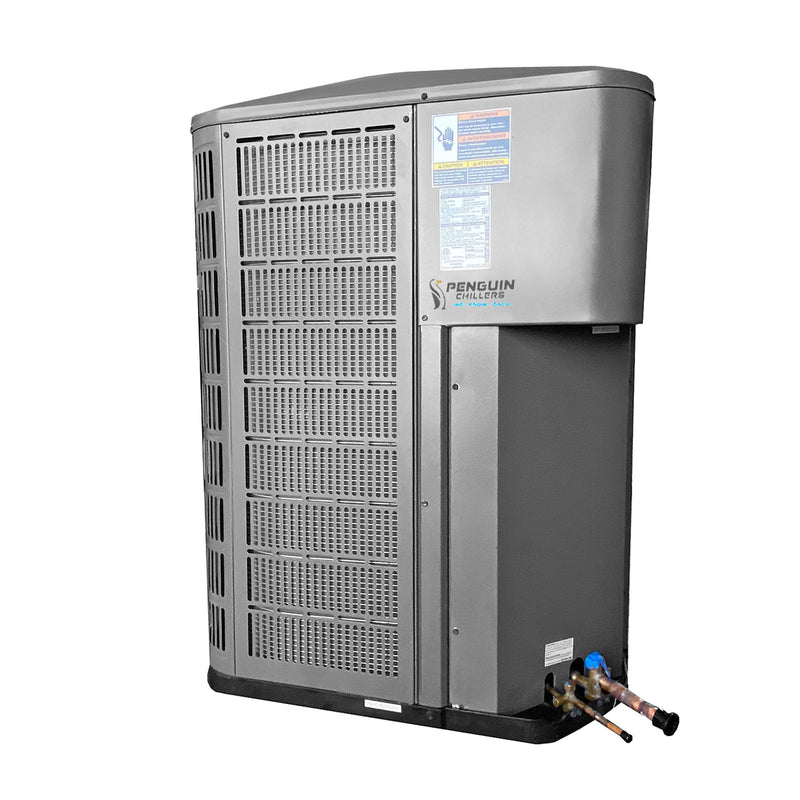

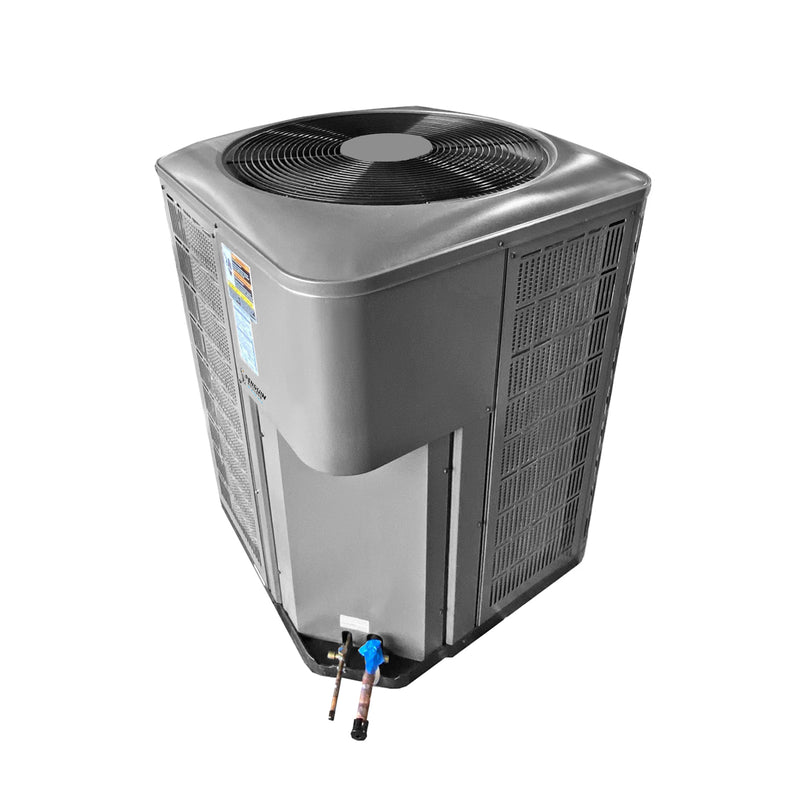

• Condenser: outdoor rated / pad mount ready
• 1 Year Product Warranty
• Proudly made in the USA

5 Ton Split Water Chiller

• 60,000 BTU/hr
• 1.5″ Slip Connections
• Copper Heat Exchanger (Titanium upgrade optional)
• 208 – 240 Volts / 35.6  Amps / Single Phase
• Condenser: 32″W x 32″D x 45″H, 215 Pounds
• Evaporator : 8″W x 42″D x 37″H, 100 Pounds
• Condenser: outdoor rated / pad mount ready
• 1 Year Product Warranty
• Proudly made in the USA

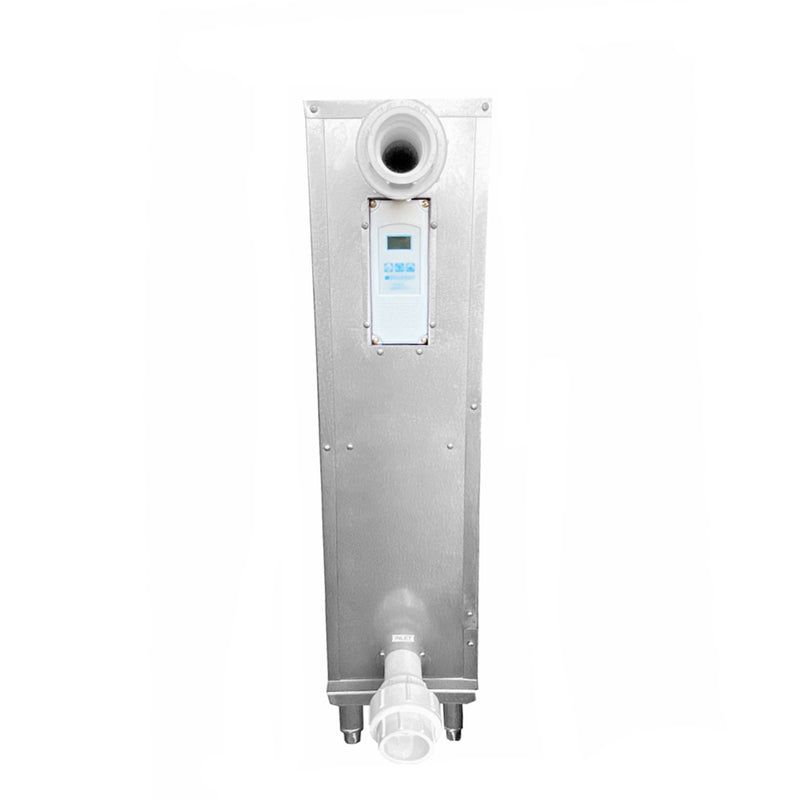

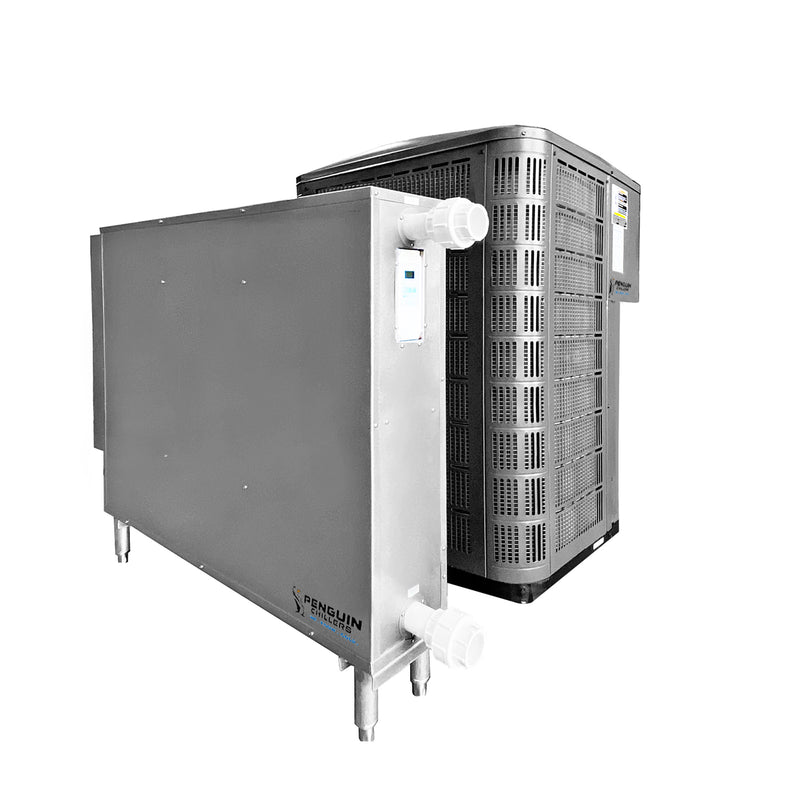

Our Split Commercial Water Chiller comes on a stainless steel frame. The units come with a built in flow switch to disable the chiller in the event of a pump failure. The units also come with a copper heat exchanger which is suitable for use in most applications. A titanium upgrade is optional. Copper heat exchangers aren’t recommended for use in a closed loop aquarium setup because toxic levels of copper can build up in water which is being used for long periods of time. The use of titanium = Reef Tank Safe!  If your application will be negatively affected by the use of copper, we suggest our titanium upgrade option.

Pump and Controller Options

• Pump Recommendation: Danner Magnetic Drive 2400gph – 3600gph. Other pumps may be acceptable for use however they often apply less than 10 psi to the chiller. If you’re using a different pool/spa pump or any other pump rated in horsepower please talk with our tech support first. There is typically a simple work around that allows our chillers to provide cooling to systems which operate at higher pressures. We would be more than happy to help you determine the best method of installation for your system. Be sure and visit our “Accessories” web page to view our selection of pumps and accessory packages available.

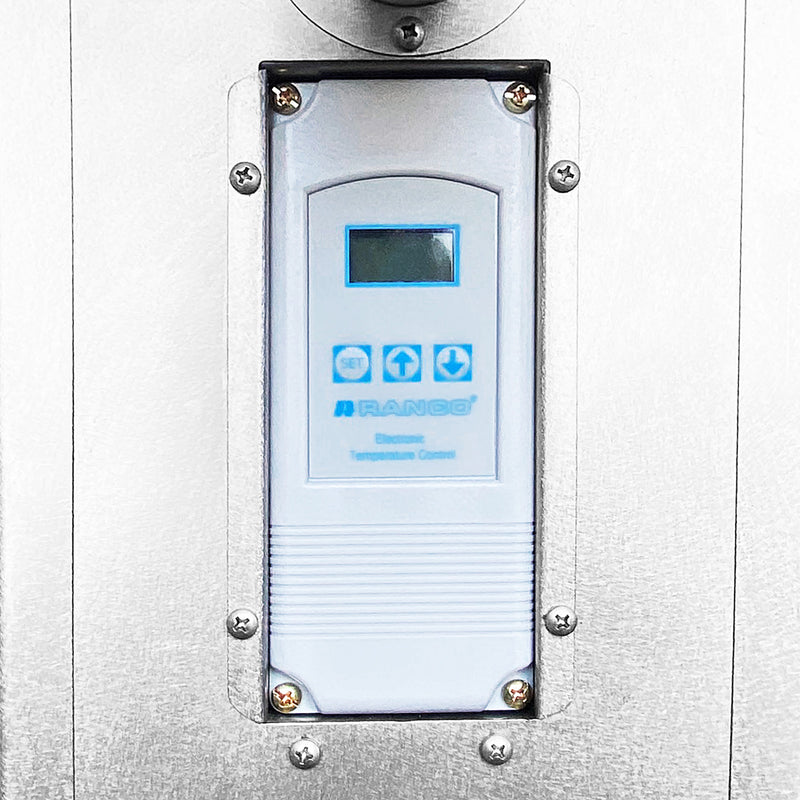

• Digital Controller: The controller constantly monitors your systems incoming water temperature, therefore, water flow is needed at all times in order for it to successfully read current temperatures. When your systems water temperature moves above your desired set point, the controller tells the compressor and fan to turn on and begin cooling the water. Once your desired set point temperature is reached, the compressor and fan will turn off.

Additional Accessories Available
