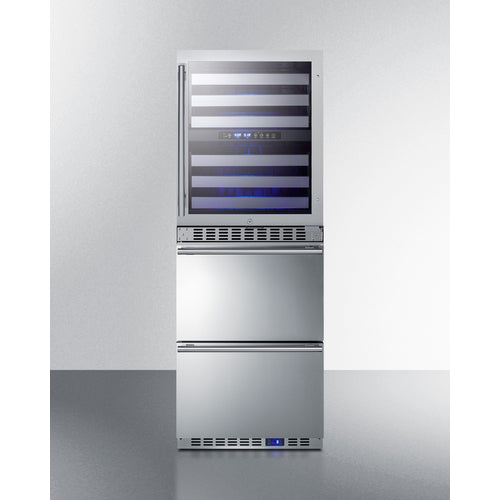

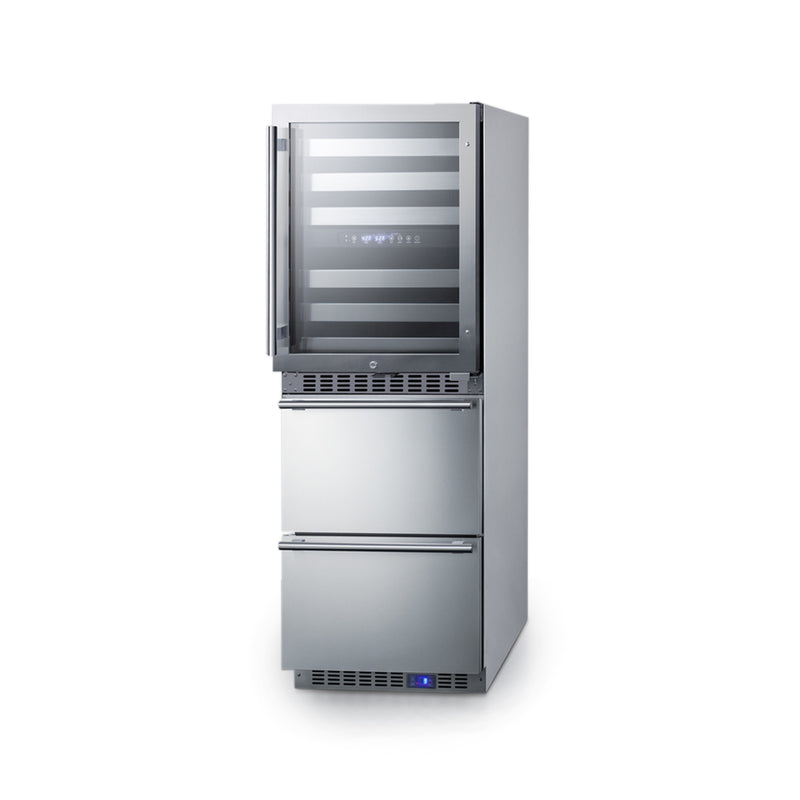

Summit | 24" Wide Combination Dual-Zone Wine Cellar and 2-Drawer All-Freezer (SWCDAF24)

Original price $6,899.99 - Original price $7,299.99
Original price
$6,899.99
$6,899.99 - $7,299.99
Current price $6,899.99

Flat rate shipping click HERE
Total refrigeration storage solution with dual-zone wine cellar & two-drawer freezer in one slim-fitting, elegant design.

KEY FEATURES


  • Auto Defrost Wine Cellar
  • Frost-Free Freezer
  • Interior LED Lighting
  • Keyed Lock on Wine Cellar
  • Digital Controls
  • Two Temperature Zones on Wine Cellar
  • 3.4 Cu Ft Capacity Freezer
  • 46 Bottle Capacity Wine Cellar
  • 65.63" H x 23.63" W x 23.5" D

DESCRIPTION


Summit brings an innovative, elegant solution to store wine and food with its combination two-zone wine cellar and two-drawer freezer - the perfect entertainment station for the home.

Sized at just under 24" wide, the SWCDAF24 combines the 46 bottle capacity two-zone wine cellar (model ALWC532) with the 3.4 cu.ft. two-drawer freezer (model SCFF532D) into one complete refrigeration station. The front-breathing design allows built-in installation, while the stainless steel cabinet affords freestanding use in a durable design. Pro-style handles in brushed stainless steel complete the modern look, while the sealed back offers added space savings when placing the unit. The included 6' Y-shaped NEMA 5-15P cord with a 3-prong right angle plug allows users to operate both units from one outlet without added depth. For user convenience, this model ships fully assembled.

The upper two-zone wine cellar has a user-reversible double-pane tempered glass door featuring a seamless stainless steel door for a modern look, while a factory-installed lock offers security as needed. Inside, automatic defrost operation ensures minimal user maintenance. It is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper-temperature zone between 41°F and 50ºF for white wine, while the lower zone is designed to store red wine between 50°F and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for convenient loading. Both zones include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.

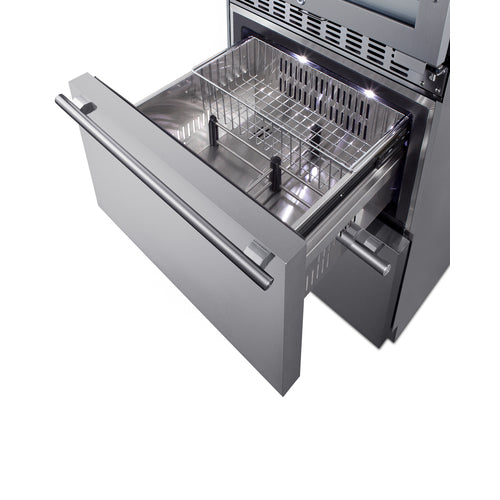

The bottom two-drawer freezer features complete stainless steel construction inside and out for long-lasting durability in an easy-to-clean design. The digital thermostat makes it simple to manage the interior temperature. An internal fan ensures both drawers are evenly cooled. Two adjustable dividers allow you to separate the drawer compartments into two or four zones to accommodate a variety of sizes. A sliding chrome basket offers additional storage convenience as needed, while the LED lighting makes it easy to view interior contents when loading or unloading both drawers. Additional features include a high-temperature alarm and an open drawer alarm for added peace of mind. Sabbath Mode disables certain electrical features during periods of religious observance, while a temperature memory function helps to recover all settings in the event of power loss.

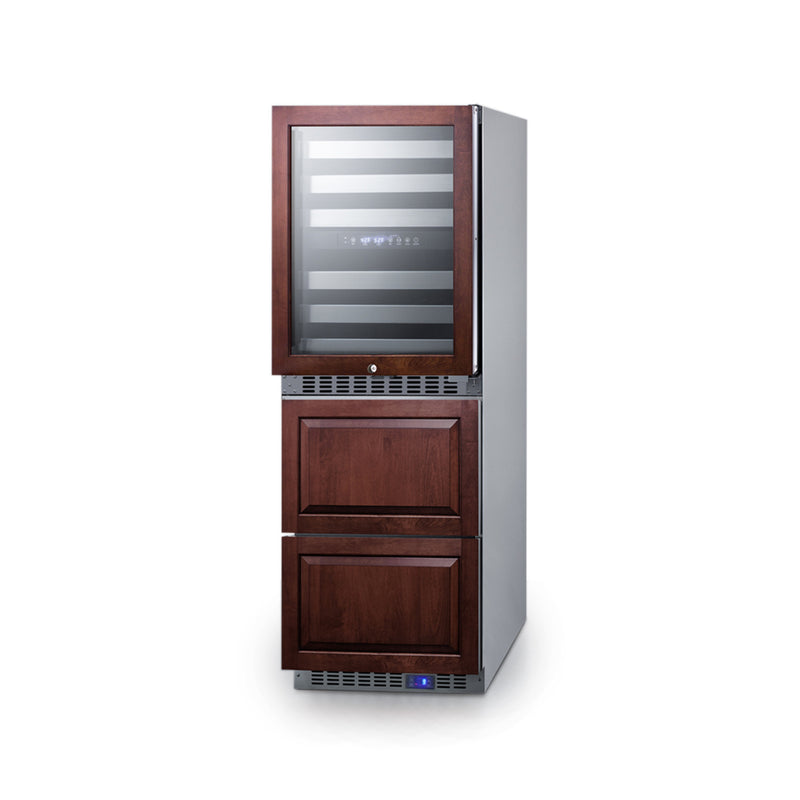

Offering complete refrigeration convenience in a slim-fitting design, the SWCDAF24 is ideal for home bars, kitchens, and similar residential settings seeking to store wine, beverages, and food in a modern style. This unit can also be ordered to accept custom panels over the drawers and door frame (see model SWCDAF24PNR). Additional options are available with a bottom refrigerator (model SWCDAR24) or a bottom refrigerator-freezer (model SWCDRF24).

Note: This unit comes with an anti-tip bracket which should be installed to prevent tipping forward.

FEATURES


    Combination wine cellar and freezer

    Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532) and two-drawer all-freezer (model SCFF532D), perfect for home bars, kitchens, and similar residential spaces

    24" wide

    Slim 24" wide fit offers full storage capacity in a compact footprint

    Built-in capable

    Front-breathing design allows this unit be built in for added space savings

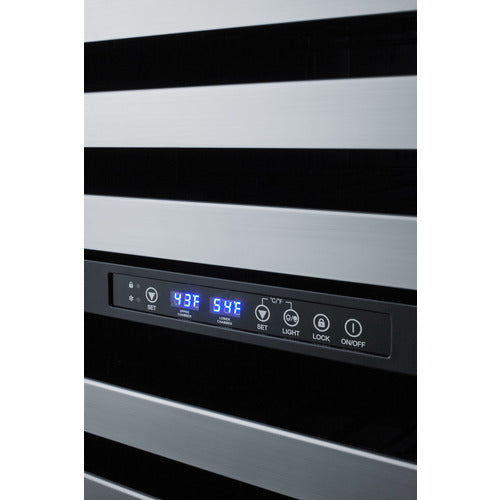

    Digital controls (both units)

    Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius

    LED lighting (both units)

    LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of both drawer interiors for easy access

    Double pane tempered glass door (wine cellar)

    Provides a full display of the interior, with two levels of glass for added protection

    Seamless stainless steel door frame (wine cellar)

    Single-piece door trim offers a more deluxe look

    Professional handles (both units)

    Solid stainless steel handles 1” in diameter afford style to any setting

    Two temperature zones (wine cellar)

    Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

    Commercial shelving design (wine cellar)

    Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

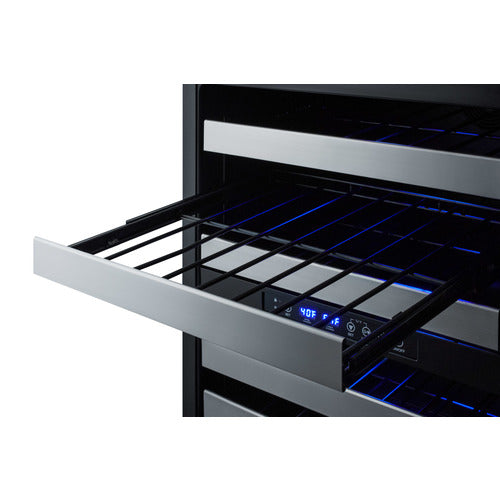

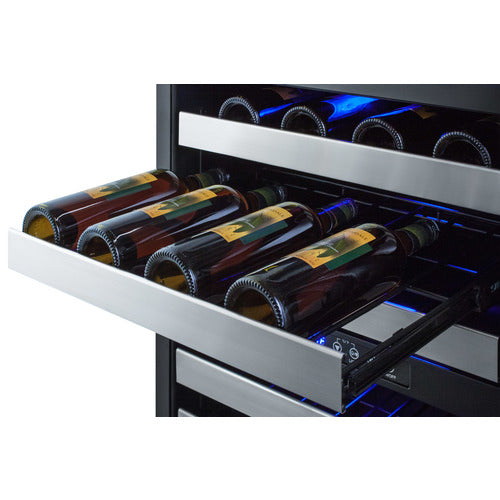

    Full-extension shelving (wine cellar)

    Shelves move smoothly on ball-bearing glides for easier loading and unloading

    Automatic defrost (wine cellar)

    Reduced maintenance with auto defrost system

    Factory installed lock (wine cellar)

    Keyed lock for secure interior, with two keys included

    Reversible door (wine cellar)

    User-reversible door swing makes it easy to best accommodate your setting

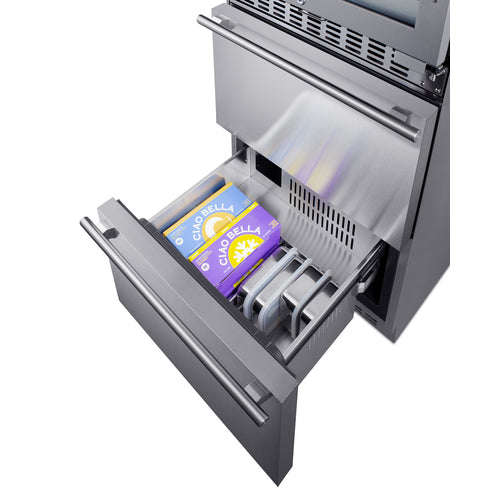

    Two stainless steel drawers (freezer)

    Slide-out drawers offer 3.4 cu.ft. of interior storage

    Stainless steel construction (freezer)

    Complete stainless steel construction offers added durability in an easy-cleaning design

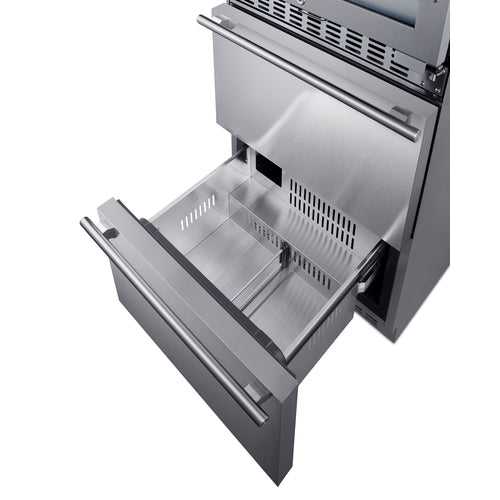

    Drawer dividers (freezer)

    Two adjustable dividers make it simple to organize the drawer interiors

    Sliding basket (freezer)

    Removable chrome basket included for easier storage convenience

    Frost-free operation (freezer)

    No-frost operation for minimum user maintenance

    Internal fan (freezer)

    Fan-forced cooling ensures the unit is evenly cooled from top to bottom

    Stainless steel kickplate (freezer)

    Protects from everyday wear and tear in a durable, elegant design

    Open drawer alarm (freezer)

    Audible alarm will sound if the drawers are left ajar for over a minute

    Temperature alarm (freezer)

    High temperature alarm sounds if the unit's interior goes out of the recommended range

    Temperature Memory Function (freezer)

    Unit will retain its last settings when power is restored in the event of power loss

    Sabbath Mode (freezer)

    Optional setting lets you disable the lighting and alarm for up to 48 hours

    Y-cord with single 3-prong right angle plug included

    Included 6 ft. cord allows users to operate both the wine cellar & freezer using a single plug for added convenience

    Anti-tip bracket

    Included and recommended for user-installation to reduce the risk of tipping

    Fully finished stainless steel cabinet

    Allows the unit to be used freestanding

    Ships fully assembled

    Unit comes fully assembled for user convenience

    Additional choices available

    This unit is also available with a bottom refrigerator (see the SWCDAR24) or a bottom refrigerator-freezer (see the SWCDRF24)

    100% CFC Free

    Environmentally friendly design with no ozone-damaging chemicals

    CARB Compliant

    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

    SPECIFICATIONS

    Overview
    Height of Cabinet 65.63" (167 cm)
    Width 23.63" (60 cm)
    Depth 23.5" (60 cm)
    Depth with Handle 25.5" (65 cm)
    Depth with door at 90° 45.75" (116 cm)
    Capacity 3.4 cu.ft. (96 L)
    Bottles 46 bottles
    Defrost Type Automatic
    Door Glass/SS
    Cabinet Stainless Steel
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Energy Usage/Year 405.0kWh/year
    Other Energy Info ALWC532: 1.25Ams; SCFF532D: 0.8 Amps
    Amps 2.05
    Voltage/Frequency 115 V AC/60 Hz
    Weight 229.0 lbs. (104 kg)
    Shipping Weight 320.0 lbs. (145 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101082820

    Wine Cellar
    Number of Zones 2
    Door Swing RHD
    Reversible Yes
    Shelf Type Wire
    Shelf Qty 6
    Thermostat Type Digital
    Interior Light Yes
    Fan Type Interior and Exterior
    Refrigerant Type R600a
    Interior Height 1 11.88" (30 cm)
    Interior Width 1 20.5" (52 cm)
    Interior Depth 1 18.0" (46 cm)
    Interior Height - Drawer 1 9.25" (23 cm)
    Interior Width - Drawer 1 17.25" (44 cm)
    Interior Depth - Drawer 1 15.5" (39 cm)
    Interior Height - Drawer 2 10.0" (25 cm)
    Interior Width - Drawer 2 17.25" (44 cm)
    Interior Depth - Drawer 2 15.5" (39 cm)
    Temperature Range ALWC532: 41°F to 64°F; SCFF532D: -11° to 11°F
    Interior Height 2 11.63" (30 cm)
    Interior Width 2 20.5" (52 cm)
    Interior Depth 2 18.0" (46 cm)
