Summit | Shallow Depth Built-In All-Refrigerator, 34' High (FF195H34)

Original price $1,999.99 - Original price $2,999.99
Original price
$1,999.99
$1,999.99 - $2,999.99
Current price $1,999.99

Flat rate shipping click HERE

Shallow depth design ideal for small-spaced residential settings.

34" H x 19" W x 17.25" D

DESCRIPTION

Summit's shallow depth series of built-in undercounter refrigeration includes ENERGY STAR certified choices for improved efficiency in modern style.

The FF195H34 features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 17.25 inches deep, it features a jet black cabinet with a sealed back for easy cleaning of the unit. The height can be adjusted between 33 7/8 and 34 1/2 inches to best suit your space. The user-reversible stainless steel door adds elegance to any setting and the stainless steel pro-style handle completes the look. A factory-installed lock offers added security, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement.

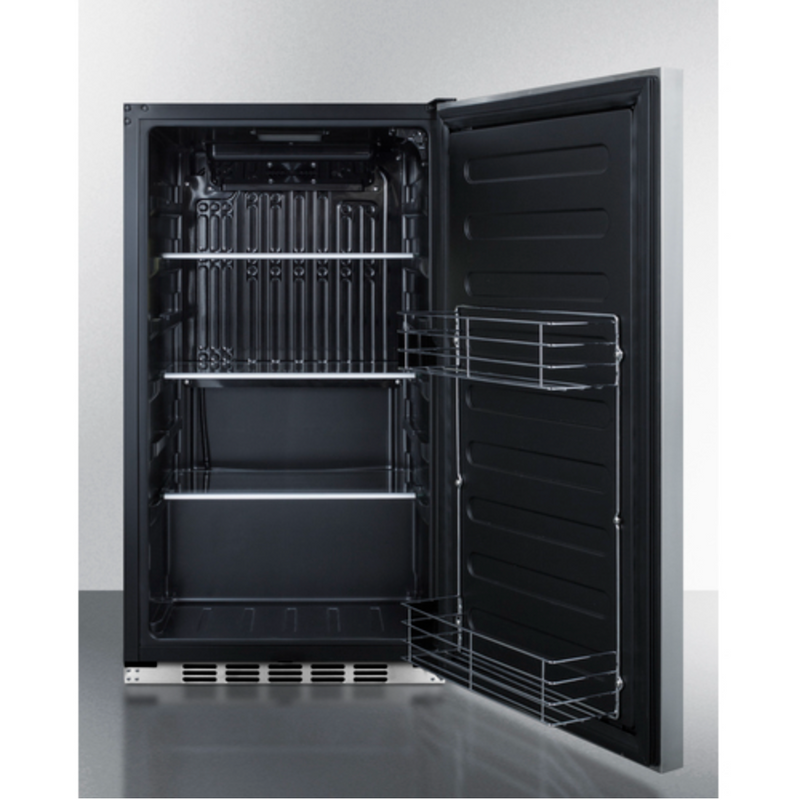

Inside, the FF195H34 utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.

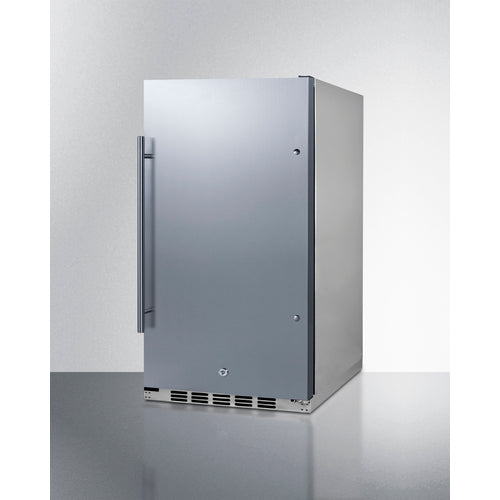

The FF195H34 is ENERGY STAR certified and designed for built-in or freestanding use. For this unit with a stainless steel exterior, see the FF195H34CSS.

FEATURES


17.25" shallow depth

Ideal for home wet bars, island kitchens, and other applications with limited footprint space

ENERGY STAR certified

Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Commercially approved

ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

Stainless steel door

Stainless steel door offers an elegant look

Automatic defrost

Reduced user maintenance with auto defrost system

Reversible door

User-reversible door swing makes it easy to adjust to your setting as needed

Factory installed lock

Keyed lock offers added security, with two keys included

Professional handle

Stainless steel handle adds an attractive touch

Adjustable shelves

Three glass shelves with brake system ensures safe, optimal storage

Door racks

Two chrome racks accommodate a variety of sizes for optimal interior storage

LED lighting

Automatically illuminates when the door is open for an attractive and energy efficient view

Black interior finish

Allows for easy cleaning and organization within the interior of the unit

Adjustable thermostat

Dial thermostat with seven temperature settings offers easy temperature management

Versatile construction

Versatile design allows for residential use

Sealed back

Space saving design for easier cleanability

Right-angle plug

Provides flexibility in unit placement without needing added depth

Fully finished black cabinet

Allows the unit to be used freestanding

Height adjustable

Four leveling legs allow you to adjust the height between 33 7/8" and 34 1/2" to best fit your undercounter space

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SPECIFICATIONS


Overview
Height of Cabinet 34.0" (86 cm)
Width 19.0" (48 cm)
Depth 17.25" (44 cm)
Depth with Handle 19.0" (48 cm)
Depth with door at 90° 35.0" (89 cm)
Capacity 3.13 cu.ft. (89 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 259.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 70.0 lbs. (32 kg)
Shipping Weight 115.0 lbs. (52 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101075662

Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.88oz.
High Side PSI 320.0
Low Side PSI 120.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 34 to 50ºF
Sound Level 33.4 dB

Dimensions
Interior Height 29.0" (74 cm)
Interior Width 16.0" (41 cm)
Interior Depth 12.75" (32 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 16.0" (41 cm)
Compressor Step Depth 6.25" (16 cm)

DOWNLOADS


BROCHURE w/ DRAWINGS
TECHNICAL DRAWING (.dwg)
